One of two supplied “Snap-On Rings” allows Microporous Film attachment to the upper Cell neck for pressure equalization within the sample cup and sample chamber. Microporous Film is attached to the upper end of the Cell Neck with a ridge. Alternatively, a “Vented Sample Cup Cap” 1600 Series, may be similarly used to maintain pressure equalization.

The second “Snap-On Ring” is used to attach a thin-film window to the lower end of the Cell. Both “Snap-On Rings” are designed with a “bead-to-indent” geometry for establishing taut and leak-resistant sample windows.

Alternatively available in 32mm diameter sample cups with integrated serrated edged “Snap-On Rings” that allow extraneous thin-film trimming close to the sample cup. Order by catalog number followed by “SE”.

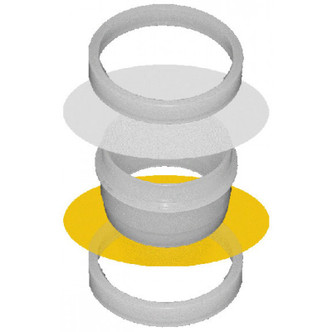

XRF Sample Cup illustrated with optionally available Microporous Film for equalizing pressure differentials within the sample cup and sample chamber.

1500 Series Sample Cup with optionally available Sample Cup Cap for equalizing pressure differentials within the sample cup and sample chamber.

Features;

• Double open-ended
• Top sample filling
• Microporous film attachment provision
• “Snap-On Ring” thin-film attachment

100 sets per bag
