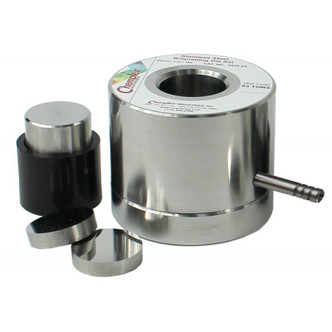

Chemplex® die sets are fabricated from a quality grade of stainless steel. They are annealed to a Rockwell "C" hardness of at least 55 to minimize or eliminate abrasion and scoring from contact with very hard sample particles.
Close tolerance precision grinding ensures perfect dimensional compatibility with Chemplex® stainless steel and tungsten carbide pellets and PelletCup® compressible tapered aluminum briquetting cups. Each die set is labeled with the maximum load; do not exceed it.
For applications requiring briquetting in an evacuated environment, die sets are optionally available with a fluted side-arm and appropriate "O" ring seals for connection to a vacuum source.
Chemplex® die sets are available in all standard diameter sizes for XRF briquette formations. For applications in an evacuated environment, optional models with fluted side-arms and related “O” ring seals are available. A 13mm die is also available for IR sample preparations.
Chemplex® compressible tapered aluminum PelletCups® and PlastiCups® brands are strongly recommended for use with Chemplex® briquetting die sets and all SpectroPress® pellet presses.
- Optional for Manual and Automatic Standard SpectroPress® Pellet Press models
- 13, 32, 35, 40 and 45mm die sizes
- Annealed stainless steel to Rockwell “C” hardness 56-58
- Resistant to scratches and gouging
- High precision and close tolerances
- Select model with or without side-arm evacuation feature
Assembly:
The die-sets must be assembled in the correct order for proper operation. Please refer to the assembly figure. The die body (2) is placed on top of the die base (1). The pellet (3) is inserted into the die body (2) with the high polished finish up (towards the sample). The sample (6) is placed in the die body (2) on top of the die pellet (3). The second die pellet (3) is placed inside of the die body (2) on top of the sample (6) with the high polished finish down (towards the sample). The plunger (5) is placed in the die body (2) on top of the die pellet (3).
IMPORTANT:
Chemplex® manufactured pellet presses, briquetting dies and compressible tapered aluminum briquetting PelletCups® are designed for compatibility in relation to each other. Chemplex® assumes no responsibility for the incompatibility or performance of seemingly similar items used in conjunction with Chemplex® manufactured products and any damages.
Close tolerance precision grinding ensures perfect dimensional compatibility with Chemplex® stainless steel and tungsten carbide die pellets and PelletCups® compressible tapered briquetting cups. Each die set is labeled with a maximim load, also listed in the table below, to ensure safe operation. These maximum loads are not to be exceeded.
Specifications
|
Catalog Number
|
Diameter of
Sample Briquette
|
Max
Force
(Tons)
|
Evacuable
|
Superseded
|
|
4013
|
13mm (0.51”)
|
8
|
Yes
|
4075E-13
|
|
4013-55
|
13mm (0.51”)
|
8
|
No
|
4075N-13
|
|
4030
|
32mm (1.26”)
|
50
|
Yes
|
4075E-32
|
|
4030-55
|
32mm (1.26”)
|
50
|
No
|
4075N-32
|
|
4038
|
35mm (1.38”)
|
70
|
Yes
|
4075E-35
|
|
4038-55
|
35mm (1.38”)
|
70
|
No
|
4075N-35
|
|
4040
|
40mm (1.57”)
|
85
|
Yes
|
4075E-40
|
|
4040-55
|
40mm (1.57”)
|
85
|
No
|
4075N-40
|
|
4047
|
45mm (1.77”)
|
85
|
Yes
|
4075E-45
|
|
4048-55
|
45mm (1.77”)
|
85
|
No
|
4075N-45
|
|
4075E-13
|
13mm (0.51”)
|
8
|
Yes
|
N/A
|
|
4075N-13
|
13mm (0.51”)
|
8
|
No
|
N/A
|
|
4075E-32
|
32mm (1.26”)
|
40
|
Yes
|
N/A
|
|
4075N-32
|
32mm (1.26”)
|
40
|
No
|
N/A
|
|
4075E-35
|
35mm (1.38”)
|
40
|
Yes
|
N/A
|
|
4075N-35
|
35mm (1.38”)
|
40
|
No
|
N/A
|
|
4075E-40
|
40mm (1.57”)
|
40
|
Yes
|
N/A
|
|
4075N-40
|
40mm (1.57”)
|
40
|
No
|
N/A
|
|
4075E-45
|
45mm (1.77”)
|
40
|
Yes
|
N/A
|
|
4075N-45
|
45mm (1.77”)
|
40
|
No
|
N/A
|
View the sizing chart above and CONTACT US today for a quote!
